1. High productivity: ultrafast laser, equipped with at least 8 processing beams, single-machine capacity exceeds 150MW;

2. High precision: with a number of unique secret technologies, the scribing accuracy

＜±10um, the dead zone can be controlled within 130um;

3. High reliability: unique design concept, equipment utilization rate exceeds 98%;

4. Stable scribing mode: the product does not move, the multi-channel cutting head moves, avoiding the vibration problem when the product moves, ensuring the stability of scribing;

5. Mechanical spectrometry: each channel is equipped with an attenuation module to ensure that the beam power fluctuation is ≤3%

?

Large-area high-speed mass production equipment

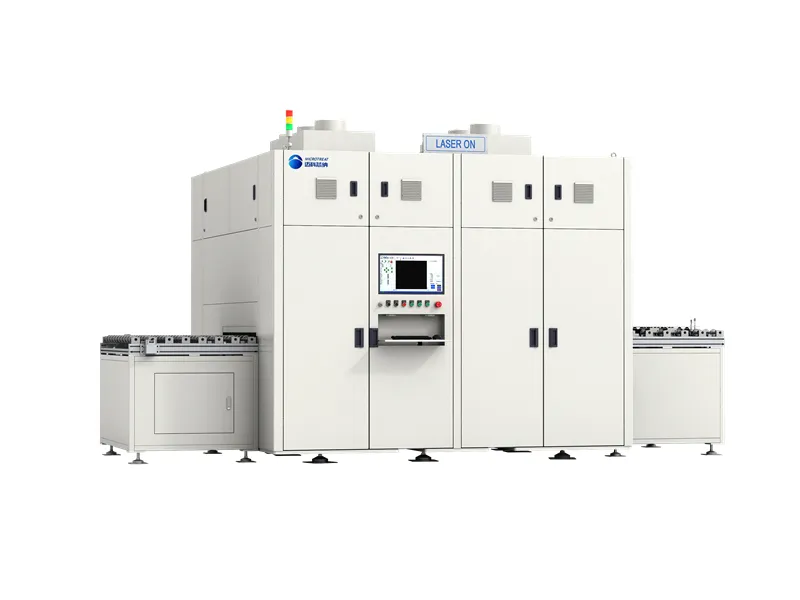

The perovskite large-area laser mass production equipment is designed for efficient and large-scale production, equipped with multi-beam parallel processing technology, supporting large-size glass/flexible substrates of 1200x600mm and above (single processing area ≥0.72㎡), laser accuracy ≤20μm, and maximum scribing speed ≥1.5m/s. It adopts a mechanical spectroscopic optical system, and each channel is equipped with an attenuation module to ensure the stability of the beam power. Integrated visual positioning and distance measurement system, compatible with P0-P5 full-process laser process, stable yield ≥ 98%, adapted to roll-to-roll (R2R) process, enabling low-cost, high-consistency mass production of perovskite components.

Highlights

1. Mechanical beam splitting, each channel is equipped with an attenuation module to ensure that the beam power fluctuation is ≤3%

2. The product does not move, and the multi-channel cutting head moves to avoid vibration when the product moves and ensure the stability of the marking

3. Specially designed combined platform to effectively reduce the damage of the laser to the platform;

4. Multiple wavelengths of lasers can be selected to ensure the best absorption effect;

5. High-speed gantry motion module, maximum marking speed ≥1.5m/s

6. P1-P3 line width can be customized, 20-50um

7. Professional software for mass production equipment, full-featured, editable process

?

Features

1. Fully automatic operation mode, equipped with automatic loading and unloading system

2. Semi-automatic mode, test parameters

3. Specific loading and unsizing system to initially position the product 4. High and low magnification CCD cameras can grab the edge of the glass or the mark for positioning

4. The X-axis is driven by a linear motor to achieve precise stepping feeding of the product;

5. The Y axis is driven by a linear motor, driving a multi-channel splitting processing system, using a flying optical path to perform scratching along the Y direction

6. Equipped with an ultrafast laser, different parameters can be set through software recipes

7. The etching heat-affected area is small and the crater height is low.

?

Applications

1. CIGS battery

2. Cadmium telluride battery

3. Perovskite single stack battery cleaning

4. Suitable for mass production manufacturers

5. For other battery materials, please consult our relevant personnel

?

Specifications

1. Product size: 600x1200mm, 1000x2000mm, 1200x2400mm, customizable

2. Industrial camera equipped with high and low magnification telecentric lens, CCD positioning accuracy ≤±3μm

3. Rigid glass thickness: 1.1-6mm; compatible with flexible (attached to rigid substrate)

4. X/Y linear motor positioning accuracy ≤±3μm, repeatability ≤±2μm

5. P4 edge cleaning galvanometer scanning maximum processing speed: 10000mm/s, edge cleaning speed ≥180mm/s@10mm width

6. P1-P3 maximum marking speed ≥1500mm/s

7. Marking single-side thermal impact ≤10μm

8. Sub-cell width: 4-20mm adjustable; edge cleaning width: 2-30mm adjustable

9. File formats that can be processed: standard Gerber files, DXF files, DWG files, etc.

10. Windows 10 control PC, 21.5-inch monitor

11. TeamViewer remote access

12. Installation and training on site by Microtreat staff

13. Dust is collected by dust collector, exhaust flow: >2250m3/h, air duct diameter: ￠250mm

14. Compressed air pressure: 0.5~0.7Mpa, flow: <400L/min, compressed air pipe diameter: ￠12mm

15. Marble base and metal welded frame

16. Ground feet with seismic isolation function

17. Overall dimensions: about 6200x3200mmx2600mm (Subject to the actual product, 600x1200mmP1)

18. Rated power 30KW, weight <15 tons

19. 3-color status signal tower

20. 60s @ 5mm spacing, 20mm edge width, 600x1200mm

21. Interlock or Sensor installed at all door positions

?

Options

1. Local power

>480V/60Hz

2. Multiple laser wavelengths for optimal material absorption

>355nm 15W output power, 30W output power

>532nm 30W output power, 45W output power

>1064nm 500W output power, 1000W output power

3. Loading and unloading method: CV roller or robotic arm

4. Contact us to learn about your specific needs
